Specifications:
4 monitor sends, 2 effects sends
3 band channel EQ with mid-sweep parametrics
5V USB power port
Freq. response: 20-20k Hz ±1 dB
THD distortion: .01% 20-20k Hz
E I N: -117 dBm
S/N Ratio 90 dB
Dynamic Range: 104 dB
Mic Gain: 52 dB
Line Gain: 30 dB
Total Gain: 72 dB (balanced)
Max Output: +28 dBm
Power Req. 90 to 250VAC 50-60Hz, 50VA
Dimensions: 14.5″ wide X 16.3″ deep X 3.75″ high (36.8cm wide X 41.5cm deep X 9.5cm high)
Weight: 14 lbs (6.35kg)
Made in San Diego, California
Description

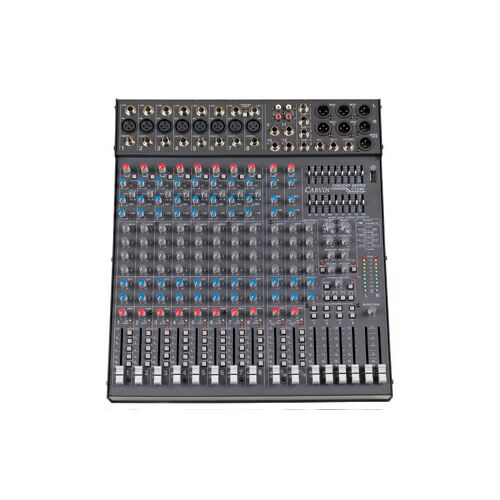

The unveiling of the new C1240 Concert Series 12-Channel Console demonstrates Carvin’s commitment to professional live sound. The C1240 includes a total of 6 channel sends: 4 monitors and 2 effects, and the 3-band channel EQ features LO, MID and HI controls, giving you greater control of your sound. The Concert Series is designed for installations such as churches and performance venues, or for touring sound systems. Careful attention has been given to the features, sound reproduction and mechanical construction, making Carvin’s new Concert Series mixers the ideal choice for most live sound applications. Professional features, unsurpassed sound, rugged construction and a price that can’t be beat make the C1240 the ideal choice for your live setup, and best of all, it’s made in the USA.
Simplicity In Operation
Ease of operation is incredibly important. The C Series consoles are designed with the operator in mind. Everything is logically arranged. Simply plug-in the channels, adjust the monitor levels and bring up the main L/R faders and you’re up and running. If you need EQ (tone changes), simply dial in the sound you want. The C Series is designed on a small-scale platform making it easy to transport. No other console offers more channels per linear inch.
