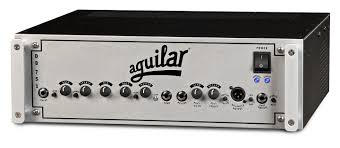

Aguilar DB 751

Aguilar DB 751
Aguilar DB 751 - Image 2
Aguilar DB 751 - Image 3

Pure Power

Experience the perfect blend of tube-drive warmth and modern innovation with the Aguilar DB 751. With 975W of pure power, this successor to the legendary DB 750 guarantees unmatched volume and performance for any venue. Its enhanced preamp allows precise tone sculpting with active boost and cut controls, while the 3-band EQ and +/-15dB active controls offer unparalleled flexibility. Constructed from premium components and built to rigorous standards, the DB 751 is designed to handle the demands of touring.

Categories: , , Tags: ,

Description

Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)

Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms

Preamp Section: Three 12AX7’s

Power Section: 12 complimentary lateral MOSFETs

Transformer: Custom Aguilar toroidal power transformer

EQ Section: passive tone stack with active midrange element

  • Bass: +12 / -12 @ 40Hz
  • Midrange: +12 / -12 @ 750Hz
  • Treble: +12 / -7 @ 4kHz

Deep Switch: Adds 5 dB of broadband boost at 30 Hz

Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz

Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation

Inputs: One 1/4″ input jack with an active/passive switch

Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.

Cooling: Two high-quality whisper fans with thermal speed control

Rack Size: Three Spaces, Includes detachable rack ears

Includes: Rack Ears
