Key Takeaways
- Digital mixers deliver clear, balanced sound through precise, real-time control of multiple audio sources.
- They have built-in effects and EQ to enhance audio quality without needing additional external equipment.
- Remote operation allows sound engineers to adjust mixes from anywhere in the venue.
- Integration with recording and streaming setups ensures broadcast-ready audio.
- Skilled operators are essential for setup, live adjustments, and quick troubleshooting during events.
Introduction
Digital mixers are the unsung heroes that underpin live events. Operating at the nexus of technology and artistry, digital mixers ensure that every note and sound is perfectly audible.
As the nerve centre of any live production, digital mixers manage various audio sources, balance complex mixes, and allow for real-time modifications.
Behind the scenes, crews adapt to performance dynamics and promptly respond to unforeseen challenges.
Yet, the significance of digital mixers and their crews is sometimes overlooked as the glue that binds all live event elements together. This article seeks to explore the synergy between digital mixers and their crews, unpacking how they help create immersive event atmospheres.

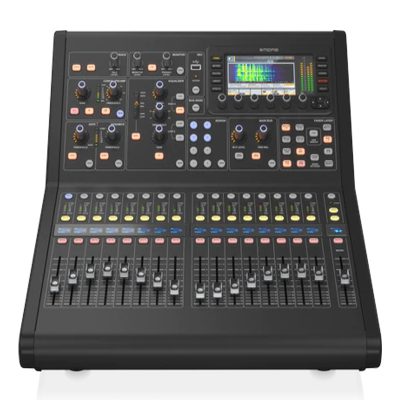

What is a Digital Mixer in sound system equipment?
A digital mixer is a specialised sound system equipment that exploits digital signal processing instead of traditional analogue circuitry to combine, route, and alter different audio input signals.
Digital mixers, in contrast to analogue mixers, offer several control options for every channel. For instance, built-in effects, equalisation, compression, gating, feedback control, etc.
In fact, digital mixers offer standout advantages over analogue mixers during live events with multiple bands or changing audio needs. For instance:
- They allow for extensive customisation and flexibility, like the capability to store and recall settings for quick adjustments
- They often feature motorised faders and a compact footprint due to multifunction controls and layered interfaces.
- They can support remote operation via computer or tablet, enabling sound engineers to manage the mix from different locations.
How does a digital mixer work?
In practice, a digital mixer utilises analogue-to-digital converters (ADC) to convert the analogue audio from microphones or instruments into digital format. It subsequently processes these signals digitally and then exploits digital-to-analogue converters (DAC) to convert the output back to analogue signals for playback and amplification.
After conversion, these digital signals go through a digital signal processor (DSP) in the mixer. This component programmatically allows the sound engineer to precisely control and mix audio.
The sound engineer essentially has real-time control over dynamics like compression and gating, volume levels, and equalisation (EQ). They can even iteratively apply different audio effects like reverb and echo.
Furthermore, the digital mixer’s interface typically features touchscreens, rotary knobs, and motorised faders that can recall saved settings instantly. Additionally, they often support features like multi-track recording, remote control via tablets, and network integration.
Overall, digital mixers’ capacity to programmatically store presets and swiftly recall intricate settings makes them indispensable in environments with multiple acts or rapid changes.
Why is a Digital Mixer Important for Live Sound?
Digital mixers allow engineers to produce crystal-clear, high-quality audio—even in the most challenging or uncertain settings. Here are some reasons why employing a digital mixer is essential for any contemporary event like a concert or business conference:
Clear, consistent audio for every audience member
Digital mixers help minimise noise and distortion, delivering pristine sound quality regardless of venue size or acoustics. In practice, they programmatically allow for precise control over audio levels and tonal balance.
Thereby, ensuring that each speaker, instrument, and vocal can be heard clearly and balanced well in the mix. This is crucial for audience engagement and overall event success.
Real-time adjustments for speakers, performers, and environments
Unlike analogue mixers, digital mixers allow for real-time dynamic adjustment of performer volume and EQ levels as the event evolves—without introducing noise or delays.
This capability is especially useful when dealing with unexpected feedback, different speaker tones, or heterogenous room acoustics.
Multi-channel input control for complex setups
Digital mixers accommodate intricate setups with disparate microphones, instruments and multimedia sources. This multi-channel management capability enables inputs to be grouped, named, and processed individually. Thus, making it easier to balance sound for panels, bands, or multimedia presentations.
Built-in effects and EQ for polished sound
The majority of digital mixers have built-in digital signal processors (DSP) that offer delay, EQ, reverb, and compression. All these effects are crucial for improving musical richness and vocal intelligibility, without needing extra external gear.
Remote control via tablet or app for on-the-fly mixing
Wi-Fi enabled digital mixers enable sound engineers to wirelessly control the mix. This capability is essential for dynamic or mobile event venues because it allows engineers to evaluate sound from the viewpoint of the audience. Or even make adjustments in real time without being confined to the mixing booth.
Integration with the recording and streaming setup
Nowadays, live streaming and session recording are common features of events. To ensure broadcast-quality sound, digital mixers usually have USB or digital audio outputs that connect straight to streaming devices.
Additionally, they enable multi-track recording, which enables post-event mixing for promotional, archive, or on-demand video.
Types of Digital Mixers for Different Events
Digital mixers don’t just control sound—they empower audio precision, flexibility, and professionalism across live events. Here’s a breakdown of prevalent digital mixers that cater to small conferences and large-scale productions.
- Allen & Heath 1604 16 Channel Digital Mixer: This is a 16-channel digital mixer with 10 balanced XLR inputs and 4 subgroups for professional live and studio use. It features dynamic compression on the first six channels, 3-band EQ with sweepable mids, and 100 built-in DSP effects from Alesis. Additionally, it maintains a USB audio interface for 24-bit recording and playback, plus four aux sends per channel with pre/post-fader options.
- Allen & Heath 64 Channel Digital Mixer: This advanced digital mixer features 64 input channels and 42 motorised faders. Additionally, it has dual 15.6″ DSP touchscreens that offer gesture control and fully-customisable routing options. It is ideal for large, complex live productions.
- Allen & Heath SQ-7 48 Channel Digital Mixer: This state-of-the-art mixer possesses a built-in 32 x 32 USB audio interface, a 64-channel I/O port and an SLink port for remote audio and I/O expansion. It also maintains a high-resolution touchscreen with motorised faders and comprehensive effects processing. Its compact yet powerful design makes it perfect for midsize to large events.
- Allen & Heath SQ5 64 Channel Digital Mixer: With its broad live sound mixing capabilities, the SQ-5 digital mixer is built on Allen & Heath’s acclaimed XCVI 96kHz FPGA audio engine. With less than 0.7ms of latency, the SQ-5 produces audio of the highest quality despite its robust processing. Overall, this is an intelligent mixing solution for live music, worship sound, and educational institutions.
- Alto Live 1202 12 Channel Mixer: This 12-channel, 2-bus mixer is equipped with flexible routing options and 7 balanced XLR inputs with switchable phantom power. It also possesses 3-band EQs for additional tonal shaping and a 9-band graphic EQ for main or monitor outputs. Additionally, it features 60mm faders with LED meters that provide precise control for accurate, hands-on mixing.
- Carvin C1240 Mixer Console: This 12-channel mixer includes a total of 6 channel sends. These are 4 monitor sends and 2 effect sends. It also features a 3-band channel EQ with LO, MID and HI controls. Overall, it’s suitable for live sound and studio use.
How to Use a Digital Sound Mixer?
Using a digital mixer entails connecting various devices whilst understanding key controls to manage complex sound environments. To connect a digital mixer to a computer, a USB or Ethernet interface is typically required.
With the connection set, the mixer and your recording or streaming software can exchange digital audio signals. For speakers, outputs from the mixer are connected to powered speakers or amplifiers that drive passive speakers. Other systems like stage monitors or effects units are connected via auxiliary outputs, depending on the mixer’s routing capabilities.
It’s also imperative to understand DCA (Digitally Controlled Amplifier) groups for efficient mixing. In practice, DCAs don’t pass audio themselves but control the level of the assigned channels.
As such, they allow engineers to control the volume of multiple channels concurrently without adjusting each fader individually. Such capabilities are helpful during live performances where quick adjustments are needed on the fly.
The Role of the Sound Engineer and Mixer Crew
Sound engineers set up, configure, and operate the mixing console and all associated audio equipment to deliver crisp and balanced sound to both the audience and performers.
Why does a digital mixer need a skilled operator?
Digital mixers are highly advanced sound devices that feature digital signal processors that orchestrate real-time equalisation, compression, effects, and routing.
A skilled operator is therefore necessary to fully leverage the intricate capabilities of a digital mixer. A professional operator also ensures prompt resolution of any problems during live events.
What the sound engineer does before and during the event
A sound engineer programs the mixer, sets up equipment, and does soundchecks before the event. During the event, they iteratively mix live audio by adjusting equalisation, levels and effects in real time.
Communication between the crew and the stage team
Effective communication between digital mixer operators and the stage team facilitates efficient coordination for prompt cueing, troubleshooting, and stage change management. Thereby, ensuring a seamless live performance.
FAQ
What is the best digital mixer for live sound?
The ideal digital mixer for live sound depends on the event size, complexity, and audio demands. For small gatherings, compact and wireless models offer portability and simple control. On the other hand, medium to large events might require extensive routing, motorised faders, and robust effects processing.
What’s the difference between a 16-channel and 24-channel mixer?
A 16-channel mixer can handle up to 16 independent audio inputs. In contrast, a 24-channel mixer handles up to 24 independent inputs. Having more channels allows one to simultaneously control more instruments, microphones, or audio sources.
Can I use a digital mixer without a sound engineer?
Yes, but some technical knowledge is needed. Without a sound engineer, beginners may encounter a steep learning curve or produce poor mixes due to the intricate workflows of digital mixers.
How do I connect a digital mixer to a computer for recording?
Digital mixers typically use Ethernet or USB interfaces to connect to computers. This consequently allows for multi-track recording and playback. To externally record and control the audio signals, you’ll need appropriate audio software like a DAW (Digital Audio Workstation).
What digital mixer is best for small events?
For small events, compact mixers like the Allen & Heath 16-channel digital mixer are ideal, given their portability, integrated effects, and easy-to-use interface. This portable mixer provides professional sound reinforcement without overwhelming complexity.
Conclusion
In conclusion, mixers and their dedicated crews ensure the flawless integration of all audio elements during the live performance. In practice, a digital mixer serves as the real-time control centre—managing effects and dynamically adjusting the audio to suit the performance.
However, this technical orchestration is only possible with experienced operators. These professionals understand the intricacies of sound mixing and can react swiftly to any issues during the event. Thus, ensuring the audience experiences crisp, balanced, and immersive sound.
